Install WireGuard VPN Server and Client on CentOS 7
Install WireGuard VPN server on CentOS 7, client on Linux and Windows
WireGuard is a free alternative to OpenVPN with great encryption, speed, and simplicity. The lightweight, secure, and cross-platform VPN relies on advanced cryptography technologies in addition to supporting Windows, Linux, MacOS, BSD, Android, and iOS operating systems.
WireGuard installation is quite easy, and you only need to follow a few steps. Once installed, you can establish a connection by first exchanging the matching keys between the server and the client. This means that only a client machine with a public key corresponding to the server’s key will connect.
Unlike the client-server models, the WireGuard is a peer to peer VPN. The operation depends on the configuration, and this determines if the peer will operate like the traditional server or client.
In this article we’ll show you how to set up your own VPN server running CentOS 7, then set up the WireGuard client on your local machine that might be running CentOS 7, Windows, Ubuntu 18.04, or Debian 9.
Contents
How to set up the WireGuard server on CentOS 7
Step 1. Install WireGuard
Step 2. Generate server keys
Step 3. Configure the server interface
How to set up WireGuard client: CentOS 7
Step 1. Install WireGuard on client machine
Step 2. Generate client keys
Step 3. Configure client interface
Step 4. Add the client peer to the server
How to set up WireGuard client: Windows
How to set up WireGuard client: Ubuntu 18.04
How to set up WireGuard client: Debian 9
How to set up the WireGuard server on CentOS 7
Prerequisites
- CentOS 7 running on a cloud-based virtual machine (as you’ll need a static IP address)
- An account with
sudoprivileges - If you prefer to use root,
sudocommands will still work. Alternatively, simply leave out thesudoprefix when you copy and paste all commands.
Step 1. Install WireGuard
Update the system
sudo yum update
Then, reboot your CentOS server
shutdown -r now
Set up the EPEL repository
This step will install the WireGuard-tools package from the EPEL repository. This provides the wg binaries that control the WireGuard server.
sudo yum install epel-release https://www.elrepo.org/elrepo-release-7.el7.elrepo.noarch.rpm
Enter y when prompted and proceed
Output Installed: elrepo-release.noarch 0:7.0-5.el7.elrepo epel-release.noarch 0:7-11 Complete!
sudo yum install yum-plugin-elrepo
Enter y when prompted twice
Output Installed: yum-plugin-elrepo.noarch 0:7.5.3-1.el7.elrepo Complete!
Now you can install the WireGuard VPN on your CentOS 7 server.
sudo yum install kmod-wireguard wireguard-tools
Type y at the two prompts to install the packages
A successful installation will return the following output
Output Installed: kmod-wireguard.x86_64 9:1.0.20210606-1.el7_9.elrepo wireguard-tools.x86_64 0:1.0.20210914-1.el7 Complete!
Step 2. Generate server keys: CentOS 7
We will now generate the key pairs for the server.
Create a directory for the WireGuard on the server.
sudo mkdir -p /etc/wireguard/
The system will save the public and private key pair in this directory.
To generate the keys, run the command below on the server.
sudo wg genkey | sudo tee /etc/wireguard/server_private.key | wg pubkey | sudo tee /etc/wireguard/server_public.key
This will display the server public key like below.
Output JBzWtHi9fGCfCcSs8e59tQ0Pwam16PeMVN2+SVhaL0k=
Step 3. Configure the server interface: CentOS 7
We will now create the configuration file for the interface wg0 which will be routing the VPN traffic.
In this step, you will specify the IP subnet for the VPN network. For this article, we will use 10.10.0.1/24. When choosing the subnet, ensure that it is different from the office or home network to avoid conflicts.
Find NIC
First, find the name of your server’s public NIC running this command on your server
sudo ip a
You will get an output similar to below. Look for the NIC that contains your public IP.
In this case below, the public IP is 160.119.248.10 and it is assigned to ens3 (this is your NIC that you’ll need to add to the config file below)
Output
2: ens3: mtu 1500 qdisc pfifo_fast state UP group default qlen 1000
link/ether d2:4b:86:cd:b8:3a brd ff:ff:ff:ff:ff:ff
inet 160.119.248.10/24 brd 160.119.248.255 scope global ens3
valid_lft forever preferred_lft forever
Find server private key
Next, run the following cat command to display your server_private.key
sudo cat /etc/wireguard/server_private.key
Output QOy+GMHUaXxFPlgqyZIvc8NdrdNp8XbB8ONyho6Rnns=
Copy and paste your key and your NIC temporarily in someplace secure outside of your terminal, you’ll need to add it to the config file below. (Don’t forget to delete the temporary file after you’ve added the key and NIC to your config)
Install Vim
Now, we will use Vim text editor to create the config file. If you don’t have it installed on your server yet, run this command on your server.
sudo yum install vim -y
Output Installed: vim-enhanced.x86_64 2:7.4.629-8.el7_9 Dependency Installed: gpm-libs.x86_64 0:1.20.7-6.el7 perl.x86_64 4:5.16.3-299.el7_9 perl-Carp.noarch 0:1.26-244.el7 perl-Encode.x86_64 0:2.51-7.el7 perl-Exporter.noarch 0:5.68-3.el7 perl-File-Path.noarch 0:2.09-2.el7 perl-File-Temp.noarch 0:0.23.01-3.el7 perl-Filter.x86_64 0:1.49-3.el7 perl-Getopt-Long.noarch 0:2.40-3.el7 perl-HTTP-Tiny.noarch 0:0.033-3.el7 perl-PathTools.x86_64 0:3.40-5.el7 perl-Pod-Escapes.noarch 1:1.04-299.el7_9 perl-Pod-Perldoc.noarch 0:3.20-4.el7 perl-Pod-Simple.noarch 1:3.28-4.el7 perl-Pod-Usage.noarch 0:1.63-3.el7 perl-Scalar-List-Utils.x86_64 0:1.27-248.el7 perl-Socket.x86_64 0:2.010-5.el7 perl-Storable.x86_64 0:2.45-3.el7 perl-Text-ParseWords.noarch 0:3.29-4.el7 perl-Time-HiRes.x86_64 4:1.9725-3.el7 perl-Time-Local.noarch 0:1.2300-2.el7 perl-constant.noarch 0:1.27-2.el7 perl-libs.x86_64 4:5.16.3-299.el7_9 perl-macros.x86_64 4:5.16.3-299.el7_9 perl-parent.noarch 1:0.225-244.el7 perl-podlators.noarch 0:2.5.1-3.el7 perl-threads.x86_64 0:1.87-4.el7 perl-threads-shared.x86_64 0:1.43-6.el7 vim-common.x86_64 2:7.4.629-8.el7_9 vim-filesystem.x86_64 2:7.4.629-8.el7_9 Complete!
Create config file on server
Now, run
sudo vim /etc/wireguard/wg0.conf
This will open a blank text file in Vim editor that we will use as our configuration file.
To paste/edit text in Vim, press I to enter --INSERT-- mode. Finally, add the configuration text below.
[Interface] PrivateKey = your server_private.key here Address = 10.10.0.1/24 Address = fd86:ea04:1111::1/64 ListenPort = 51820 PostUp = iptables -A FORWARD -i wg0 -j ACCEPT; iptables -t nat -A POSTROUTING -o ens3 -j MASQUERADE; ip6tables -A FORWARD -i wg0 -j ACCEPT; ip6tables -t nat -A POSTROUTING -o ens3 -j MASQUERADE PostDown = iptables -D FORWARD -i wg0 -j ACCEPT; iptables -t nat -D POSTROUTING -o ens3 -j MASQUERADE; ip6tables -D FORWARD -i wg0 -j ACCEPT; ip6tables -t nat -D POSTROUTING -o ens3 -j MASQUERADE SaveConfig = true
NOTE:
- Replace
your server_private.key herewith your ownserver_private.key, - replace
10.10.0.1/24with your desired IP subnet, - replace all instances of
ens3with your own public NIC you found above,
Use arrow keys to navigate to text and retype.

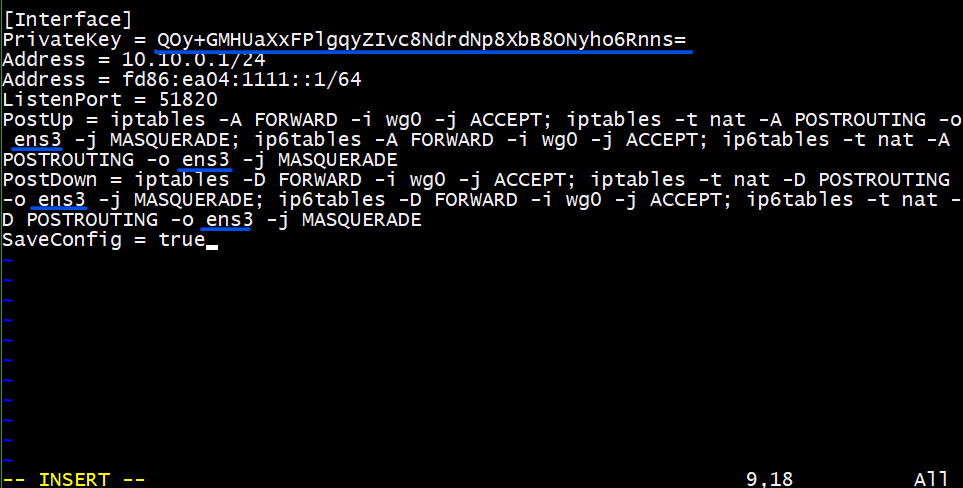

It should look as such with your own values added to fields with blue underline.
Press Esc to exit INSERT mode, then press Shift + ZZ to save changes and quit.
Enable user rights with this command below, so that only allowed users can read the file.
sudo chmod 600 /etc/wireguard/{server_public.key,wg0.conf}
Configure firewall rules
Option 1: If you have existing iptable rules, run the following: (If you use firewalld, use Option 2 below instead)
sudo yum install iptables iptables-services sudo iptables -I INPUT 1 -p udp --dport 51820 -j ACCEPT sudo iptables-save > /etc/sysconfig/iptables sudo systemctl enable --now iptables.service
Verify settings
sudo iptables -L
Output Chain IN_public_allow (1 references) target prot opt source destination ACCEPT tcp -- anywhere anywhere tcp dpt:ssh ctstate NEW,UNTRACKED ACCEPT udp -- anywhere anywhere udp dpt:51820 ctstate NEW,UNTRACKED
Option 2: If you are using firewalld instead, or have no existing iptable rules, run the following commands.
Check for unit file
sudo systemctl status firewalld
If no unit file is found, it’s most likely that firewalld is not installed. Run the following to install firewalld:
sudo yum install firewalld sudo systemctl enable --now firewalld
Use the following command with port 51820 specified in the config file screenshot above inserted in the ListenPort field as such:
sudo firewall-cmd --permanent --add-port=51820/udp --zone=public
Output success
Verify settings
sudo firewall-cmd --reload sudo firewall-cmd --list-ports
Output 51820/udp
NAT
For NAT to work, we will enable forwarding for both IP4 and IP6 in the file /etc/sysctl.d/99-sysctl.conf file. Run:
sudo echo "net.ipv4.ip_forward=1" >> /etc/sysctl.d/99-sysctl.conf sudo echo "net.ipv6.conf.all.forwarding=1" >> /etc/sysctl.d/99-sysctl.conf sudo sysctl -p /etc/sysctl.d/99-sysctl.conf
Output net.ipv4.ip_forward = 1 net.ipv6.conf.all.forwarding = 1
wg0 interface
We are now ready to bring up the wg0 interface. To do this, use the wg-quick command as follows
sudo wg-quick up wg0
Output [#] ip link add wg0 type wireguard [#] wg setconf wg0 /dev/fd/63 [#] ip -4 address add 10.10.0.1/24 dev wg0 [#] ip -6 address add fd86:ea04:1111::1/64 dev wg0 [#] ip link set mtu 1420 up dev wg0 [#] iptables -A FORWARD -i wg0 -j ACCEPT; iptables -t nat -A POSTROUTING -o ens3 -j MASQUERADE; ip6tables -A FORWARD -i wg0 -j ACCEPT; ip6tables -t nat -A POSTROUTING -o ens3 -j MASQUERADE
You can now use the wg command to see active interfaces and connected peers.
sudo wg
Since we have not configured the client, the output should be as shown below.
Output interface: wg0 public key: JBzWtHi9fGCfCcSs8e59tQ0Pwam16PeMVN2+SVhaL0k= private key: (hidden) listening port: 51820
This shows that you have successfully configured your server interface.
Lastly, to enable WireGuard on system boot, run the command below on both the server and the client.
sudo systemctl enable wg-quick@wg0
Set up WireGuard VPN client: CentOS 7
For most operating systems, the installation process for the WireGuard is the same for both the server and client. The only difference is the configuration file. In this article, we will learn how to configure a client in CentOS 7, Windows, Ubuntu 18.04 and Debian 9.
We will start by installing WireGuard on your client machine (can be your PC, another server, etc), after which we will generate the key pair for the client and finally do the configuration.
Step 1. Install WireGuard on client machine
Run the following commands and type y when prompted and wait for installations to return Complete!
sudo yum update sudo yum install epel-release https://www.elrepo.org/elrepo-release-7.el7.elrepo.noarch.rpm sudo yum install yum-plugin-elrepo sudo yum install kmod-wireguard wireguard-tools
Output Installed: wireguard-tools.x86_64 0:1.0.20210914-1.el7 Complete!
Step 2. Generate client keys: CentOS 7
Create the WireGuard directory.
sudo mkdir -p /etc/wireguard/
If running as a sudo user you may not have access to the WireGuard directory.
Use the following command to grant access to the logged-in user.
sudo chmod go+rx /etc/wireguard/
To generate key pair, run
sudo wg genkey | sudo tee /etc/wireguard/client_private.key | wg pubkey | sudo tee /etc/wireguard/client_public.key
This will generate the keys, save them in the WireGuard directory, and return your client public key:
Output 9uJZnN2duYxuSo3OJBbF2BNvt2W7J5g+1jhwP9x/83A=
You can use the cat command to view the keys.
Run the following command to return your client private key:
sudo cat /etc/wireguard/client_private.key
Copy and paste both these keys temporarily in someplace secure outside of your terminal, you’ll need them again below. (Don’t forget to delete the temporary file after you’ve added the keys to your config)
Step 3. Configure client interface: CentOS 7
In this step, we will create the configuration file /etc/wireguard/wg0.conf on the client device. Please note that the file name and location are similar to that in the server and the only difference is the contents.
You will need to replace the text fields PrivateKey, PublicKey, and Endpoint with your own values.
Find server public key
PublicKey is the server_public.key on the VPN server. Obtain it by using the cat command from anywhere on the server by specifying the full file path:
sudo cat /etc/wireguard/server_public.key
Or run the command from the server’s WireGuard directory
sudo cd /etc/wireguard/ sudo cat server_public.key
Output JBzWtHi9fGCfCcSs8e59tQ0Pwam16PeMVN2+SVhaL0k=
Install Vim on client machine
Now, we will use Vim text editor to create the config file. If you don’t have it installed on your client machine yet, run this command:
sudo yum install vim -y
Output Installed: vim-enhanced.x86_64 2:7.4.629-8.el7_9 Dependency Installed: gpm-libs.x86_64 0:1.20.7-6.el7 perl.x86_64 4:5.16.3-299.el7_9 perl-Carp.noarch 0:1.26-244.el7 perl-Encode.x86_64 0:2.51-7.el7 perl-Exporter.noarch 0:5.68-3.el7 perl-File-Path.noarch 0:2.09-2.el7 perl-File-Temp.noarch 0:0.23.01-3.el7 perl-Filter.x86_64 0:1.49-3.el7 perl-Getopt-Long.noarch 0:2.40-3.el7 perl-HTTP-Tiny.noarch 0:0.033-3.el7 perl-PathTools.x86_64 0:3.40-5.el7 perl-Pod-Escapes.noarch 1:1.04-299.el7_9 perl-Pod-Perldoc.noarch 0:3.20-4.el7 perl-Pod-Simple.noarch 1:3.28-4.el7 perl-Pod-Usage.noarch 0:1.63-3.el7 perl-Scalar-List-Utils.x86_64 0:1.27-248.el7 perl-Socket.x86_64 0:2.010-5.el7 perl-Storable.x86_64 0:2.45-3.el7 perl-Text-ParseWords.noarch 0:3.29-4.el7 perl-Time-HiRes.x86_64 4:1.9725-3.el7 perl-Time-Local.noarch 0:1.2300-2.el7 perl-constant.noarch 0:1.27-2.el7 perl-libs.x86_64 4:5.16.3-299.el7_9 perl-macros.x86_64 4:5.16.3-299.el7_9 perl-parent.noarch 1:0.225-244.el7 perl-podlators.noarch 0:2.5.1-3.el7 perl-threads.x86_64 0:1.87-4.el7 perl-threads-shared.x86_64 0:1.43-6.el7 vim-common.x86_64 2:7.4.629-8.el7_9 vim-filesystem.x86_64 2:7.4.629-8.el7_9 Complete!
Create config file on client machine
Now, run
sudo vim /etc/wireguard/wg0.conf
This will open a blank text file in Vim editor that we will use as our configuration file.
To paste/edit text in Vim, press I to enter --INSERT-- mode. Now add the configuration text below.
[Interface] Address = 10.10.0.2/24 Address = fd86:ea04:1111::2/128 SaveConfig = true PrivateKey = your client_private.key here DNS = 1.1.1.1 [Peer] PublicKey = your server_public.key here Endpoint = your server public ip:51820 AllowedIPs = 0.0.0.0/0, ::/0
NOTE:
Under [Interface]
Address = 10.10.0.2/24this must be in the same IP subnet as your server is, but the IP cannot be exactly the same. For example: increase the last digit before the prefix/24by 1. We’ve increased ours from1to2.- Replace
your client_private.key herewith your ownclient_private.key,
Under [Peer]
- Replace
your server_public.key herewith your ownserver_public.key, Endpoint: replaceyour server public ipwith your own
Use arrow keys to navigate to text and retype.
It should look as such with your own values added to fields with blue underline.
Press Esc to exit INSERT mode, then press Shift + ZZ to save changes and quit.
Set the right permissions for your configuration file wg0.conf hence making it secure.
sudo chmod 600 /etc/wireguard/wg0.conf
Step 4. Add client peer to the server
We will now add the client public key and IP address to the server using the following syntax.
sudo wg set wg0 peer client_public.key allowed-ips client_ip_address/32,fd86:ea04:1111::2/128
To do this, go to the server and change into the WireGuard directory
sudo cd /etc/wireguard/
Now run the command below with your own client_public.key inserted. As an example, it will look like this:
sudo wg set wg0 peer 9uJZnN2duYxuSo3OJBbF2BNvt2W7J5g+1jhwP9x/83A= allowed-ips 10.10.0.2/32,fd86:ea04:1111::2/128
To confirm the addition, while still on the server, run the following command:
sudo wg
Output
This shows that we have successfully added the peer.
Check connections
We will now start the interface on the client using the wg-quick command.
Note: Before you start the interface, note that if your client machine is also a server, bringing up the wg0 interface will cause you to lose SSH access to your client machine. To ensure your command completes, run the following:
sudo yum -y install screen
sudo screen
Press spacebar twice, you should now be in a /home/ directory
Now start the interface on the client machine
sudo wg-quick up wg0
This will give the following output;
Output [#] ip link add wg0 type wireguard [#] wg setconf wg0 /dev/fd/63 [#] ip -4 address add 10.10.0.2/24 dev wg0 [#] ip -6 address add fd86:ea04:1111::2/128 dev wg0 [#] ip -6 address add fe80::9582:2edf:1c90:48a4/64 dev wg0 [#] ip -6 address add fe80::f8f9:54e6:8964:c300/64 dev wg0 [#] ip -6 address add fe80::5286:1739:7ed1:30c/64 dev wg0 [#] ip -6 address add fe80::76b9:af75:4786:5ad6/64 dev wg0 [#] ip link set mtu 1420 up dev wg0 [#] ip -6 route add ::/0 dev wg0 table 51820 [#] ip -6 rule add not fwmark 51820 table 51820 [#] ip -6 rule add table main suppress_prefixlength 0 [#] ip6tables-restore -n [#] ip -4 route add 0.0.0.0/0 dev wg0 table 51820 [#] ip -4 rule add not fwmark 51820 table 51820 [#] ip -4 rule add table main suppress_prefixlength 0 [#] sysctl -q net.ipv4.conf.all.src_valid_mark=1 [#] iptables-restore -n
When both server and client interfaces are up, you can check the status using the wg command.

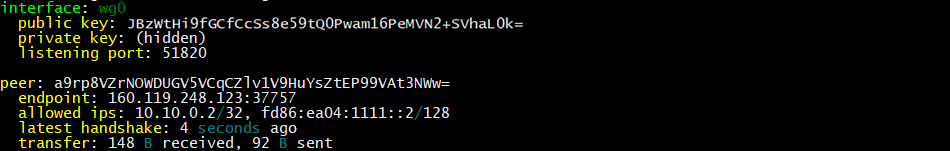

On the server
sudo wg

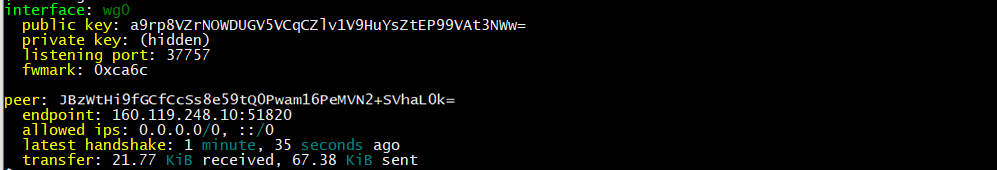

On the client machine
Note: If your client machine is also a server, you’ve lost SSH access and will now need to SSH from your server to the client machine via the IP address you assigned it in the config file above. We assigned our client machine the IP 10.10.0.2. So now we have to
ssh clientserver@10.10.0.2
Now run
sudo wg
This shows that we have successfully added the peer to the server and established a connection.
Note that you can turn the interfaces on and off using
sudo wg-quick up wg0
to enable and
sudo wg-quick down wg0
to disable.
To enable the WireGuard on system boot, run the command below on both the server and the client.
sudo systemctl enable wg-quick@wg0
Note: if your client machine is also a server, and you now have to SSH to it using the config IP via your server, use the exit command twice to exit the client machine screen session and client machine to return to your server terminal.
How to set up WireGuard client: Windows
Step 1. Install WireGuard
Download the WireGuard installer for Windows and install it on your Windows machine.
Once complete, the WireGuard client window will open.
Step 2. Add empty tunnel
Give it a name.
Your client public and private keys will already be generated and inserted for you.
Add the configuration text below with your own values in Address, PublicKey and Endpoint fields.
Address = 10.10.0.2/32, fd86:ea04:1111::2/128 DNS = 1.1.1.1 [Peer] PublicKey = your server_public.key here AllowedIPs = 0.0.0.0/0, ::/0 Endpoint = your server public ip:51820
NOTE:
Address = 10.10.0.2/32 this must be in the same IP subnet as your server is, but the IP cannot be exactly the same. For example: increase the last digit before the prefix /32 by 1. We’ve increased ours from 1 to 2.
PublicKey is the server_public.key you generated on your CentOS VPN server. Obtain it by running the cat command on the server.
sudo cat /etc/wireguard/server_public.key
Then return to the client machine and insert the value in the PublicKey field.
Lastly, add your server’s public IP in Endpoint field.
It should look as below, with your own values added above the gold underline:
Block untunneled traffic (kill-switch) will automatically be ticked, leave as is.
Click Save
Step 3. Add the client peer to the server
Now, you need to add the Windows client Public key and IP address to the server.
Your Windows client Public key will be here:
Run the command below after replacing client public key in the command below with your client Public key, and 10.10.0.2 with your own IP you just set in the client tunnel config.
sudo wg set wg0 peer client public key allowed-ips 10.10.0.2
There won’t be an output. Proceed to step 4.
Step 4. Return to the client machine
Click Activate on the Windows client machine.
If successful, the client becomes Active, and you will start seeing received and sent traffic.
How to set up WireGuard client on Ubuntu 18.04
For most operating systems, the installation process for the WireGuard is the same for both the server and client.
You’ll start by installing WireGuard on your client machine (can be your PC, another server, etc), after which you’ll generate the key pair for the client and finally, do the configuration.
Step 1. Install WireGuard on client machine: Ubuntu 18.04
Update client machine system
sudo apt update; sudo apt upgrade
Now install WireGuard
sudo apt install wireguard -y
Restart client machine and confirm that it is working
sudo modprobe wireguard
lsmod | grep wireguard
If successful, it will give the output below.
Output wireguard 221184 0 ip6_udp_tunnel 16384 1 wireguard udp_tunnel 16384 1 wireguard
Step 2. Generate client keys: Ubuntu 18.04
If running as a sudo user you may not have access to the WireGuard directory. Use the following command to grant access to the logged-in user.
sudo chmod go+rx /etc/wireguard
cd /etc/wireguard
Run the following to generate the VPN client keys;
umask 077
sudo wg genkey | sudo tee client_private.key | sudo wg pubkey | sudo tee client_public.key
This will generate the keys, save them in the WireGuard directory, and return your client public key:
Output gDf++kLs3zl7DcGiIjzdkZiLOIEbV69Y8hnjPnqcpQM=
You can use the cat command to view the keys.
Run the following command to return your client private key:
sudo cat client_private.key
Output eIjXbij7EntYxoOfxvdGf6FN+DnincRhIZGdzTMyTkA=
Copy and paste both these keys temporarily in someplace secure outside of your terminal, you’ll need them again below. (Don’t forget to delete the temporary file after you’ve added the keys to your config)
Step 3. Configure client interface: Ubuntu 18.04
The process is similar to that of the server apart from the information in the configuration files. We will call our interface wg0 and use the configuration file to define the private network, our client private key, and the server’s public key and IP address.
You will need to add your own values to the PrivateKey, PublicKey, and Endpoint fields in the code block further down.
Find server public key
PublicKey is the server_public.key on the VPN server. Go to the server and obtain the key by running the cat command:
sudo cat /etc/wireguard/server_public.key
Output JBzWtHi9fGCfCcSs8e59tQ0Pwam16PeMVN2+SVhaL0k=
Copy and paste this key temporarily in someplace secure outside of your terminal, you’ll need to add it to the config file below. (Don’t forget to delete the temporary file after you’ve added the key to your config)
Now we will create the client configuration file.
Install Vim on client machine
Vim text editor should come installed with Ubuntu 18, but if you don’t have it installed on your client machine yet, run this command:
sudo apt install vim
Create config file on client machine
Now run
sudo vim /etc/wireguard/wg0.conf
This will open a blank text file in Vim editor that we will use as our client configuration file.
To paste/edit text in Vim, press I to enter --INSERT-- mode. Now add the configuration text below.
[Interface] Address = 10.10.0.2/32 Address = fd86:ea04:1111::2/128 SaveConfig = true PrivateKey = your client_private.key here DNS = 1.1.1.1 [Peer] PublicKey = your server_public.key here Endpoint = your server public ip:51820 AllowedIPs = 0.0.0.0/0, ::/0
Use arrow keys to navigate to text and retype.
NOTE:
Under [Interface]
Address = 10.10.0.2/32this must be in the same IP subnet as your server is, but the IP cannot be exactly the same. For example: increase the last digit before the prefix/24by 1. We’ve increased ours from1to2.- Replace
your client_private.key herewith your ownclient_private.key,
Under [Peer]
- Replace
your server_public.key herewith your ownserver_public.key, Endpoint: replaceyour server public ipwith your own
It should look as such with your own values added to fields with blue underline.
Press Esc to exit INSERT mode, then press Shift + ZZ to save changes and quit.
Set the right permissions for your configuration file wg0.conf, hence making it secure.
sudo chmod 600 /etc/wireguard/wg0.conf
Step 4. Add client peer to the server
We will now add the client public key and IP to the server using the following syntax:
sudo wg set wg0 peer client_public.key allowed-ips client_ip_address/32,fd86:ea04:1111::2/128
To do this, go to the server and run the command below with your own client_public.key and client_ip_address inserted. As an example, it will look like this:
sudo wg set wg0 peer gDf++kLs3zl7DcGiIjzdkZiLOIEbV69Y8hnjPnqcpQM= allowed-ips 10.10.0.2/32,fd86:ea04:1111::2/128
To confirm the addition, run the following command on the server.
sudo wg
Output interface: wg0 public key: JBzWtHi9fGCfCcSs8e59tQ0Pwam16PeMVN2+SVhaL0k= private key: (hidden) listening port: 51820 peer: gDf++kLs3zl7DcGiIjzdkZiLOIEbV69Y8hnjPnqcpQM= allowed ips: 10.10.0.2/32, fd86:ea04:1111::2/128
This shows that we have successfully added the peer.
Check connections
We will now start the interface on the client using the wg-quick command.
Note: Before you start the client interface, if your client machine is also a server, bringing up the wg0 interface will cause you to lose SSH access to your client machine. To ensure your command completes, run the following:
sudo apt -y install screen
sudo screen
Press spacebar twice, you should now be in a /home/ directory
Now start the interface on the client machine
sudo wg-quick up wg0
If you get an error about missing resolvconf
Output [#] resolvconf -a wg0 -m 0 -x /usr/bin/wg-quick: line 32: resolvconf: command not found
install it using the command below, and then try to start the interface again.
sudo apt install resolvconf
The started interface will give the following output:
Output [#] ip link add wg0 type wireguard [#] wg setconf wg0 /dev/fd/63 [#] ip -4 address add 10.10.0.2/32 dev wg0 [#] ip -6 address add fd86:ea04:1111::2/128 dev wg0 [#] ip link set mtu 1420 up dev wg0 [#] ip -6 route add ::/0 dev wg0 table 51820 [#] ip -6 rule add not fwmark 51820 table 51820 [#] ip -6 rule add table main suppress_prefixlength 0 [#] ip6tables-restore -n [#] ip -4 route add 0.0.0.0/0 dev wg0 table 51820 [#] ip -4 rule add not fwmark 51820 table 51820 [#] ip -4 rule add table main suppress_prefixlength 0 [#] sysctl -q net.ipv4.conf.all.src_valid_mark=1 [#] iptables-restore -n
You can check the status of the interface using the wg command
On the server
sudo wg
On the client machine
Note: If your client machine is also a server, you’ve lost SSH access and will now need to SSH from your server to the client machine via the IP address you assigned it in the client config file above. We assigned our client the IP 10.10.0.2. So now we have to
ssh clientserver@10.10.0.2
Now run
sudo wg
To see if the client can ping the server run ping followed by your server IP you assigned it in the server config file:
ping 10.10.0.1
Output PING 10.10.0.1 (10.10.0.1) 56(84) bytes of data. 64 bytes from 10.10.0.1: icmp_seq=1 ttl=64 time=0.961 ms 64 bytes from 10.10.0.1: icmp_seq=2 ttl=64 time=0.785 ms 64 bytes from 10.10.0.1: icmp_seq=3 ttl=64 time=0.619 ms 64 bytes from 10.10.0.1: icmp_seq=4 ttl=64 time=0.862 ms 64 bytes from 10.10.0.1: icmp_seq=5 ttl=64 time=0.643 ms 64 bytes from 10.10.0.1: icmp_seq=6 ttl=64 time=0.743 ms 64 bytes from 10.10.0.1: icmp_seq=7 ttl=64 time=0.670 ms 64 bytes from 10.10.0.1: icmp_seq=8 ttl=64 time=0.815 ms ^C --- 10.10.0.1 ping statistics --- 8 packets transmitted, 8 received, 0% packet loss, time 7074ms rtt min/avg/max/mdev = 0.619/0.762/0.961/0.111 ms
This shows that we have successfully added the peer to the server and established a connection. Note that you can turn the interfaces on and off using
sudo wg-quick up wg0
to enable and
sudo wg-quick down wg0
to disable.
To enable WireGuard on system boot, run the command below on both the server and the client.
sudo systemctl enable wg-quick@wg0
Note: if your client machine is also a server, and you now have to SSH to it via your server using the client config IP, use the exit command to exit the client machine session and return to your server terminal.
How to set up WireGuard client: Debian 9
Make sure you have sudo privileges and that it is installed with the following commands
su
apt-get install sudo -y
If you prefer to use root, sudo commands will still work as is. Alternatively, simply leave out the sudo prefix when you copy and paste all commands.
Step 1. Install WireGuard on client machine: Debian 9
First, update client machine system
sudo apt update; sudo apt upgrade
Install kernel headers
sudo apt install linux-headers-$(uname -r)
Add the repo
sudo echo "deb http://deb.debian.org/debian/ unstable main" | sudo tee /etc/apt/sources.list.d/unstable-wireguard.list
sudo echo -e "Package: *\nPin: release a=unstable\nPin-Priority: 150\n" | tee /etc/apt/preferences.d/limit-unstable
Update the packages list and upgrade
sudo apt update
sudo apt upgrade
Install WireGuard and WireGuard tools.
sudo apt install wireguard-dkms wireguard-tools
If successful, you will see the following output.
Output Building initial module for 4.9.0-17-amd64 Done. wireguard: Running module version sanity check. - Original module - No original module exists within this kernel - Installation - Installing to /lib/modules/4.9.0-17-amd64/updates/dkms/ depmod... DKMS: install completed. Setting up wireguard (1.0.20210914-1) ... Setting up linux-headers-amd64 (4.9+80+deb9u15) ... Processing triggers for libc-bin (2.24-11+deb9u4) ...
Enable the WireGuard kernel module and check the status
sudo modprobe wireguard && lsmod | grep wireguard
Output wireguard 196608 0 ip6_udp_tunnel 16384 1 wireguard udp_tunnel 16384 1 wireguard
Step 2. Generate client keys: Debian 9
We will now generate a client private and public key, which we will add to the client configuration file.
sudo wg genkey | sudo tee /etc/wireguard/client_private.key | sudo wg pubkey | sudo tee /etc/wireguard/client_public.key
This will save them in the WireGuard directory, and return your client public key:
Output a9rp8VZrNOWDUGV5VCqCZlv1V9HuYsZtEP99VAt3NWw=
You can use the cat command to view the keys.
Run the following command to return your client private key:
sudo cat /etc/wireguard/client_private.key
Output gPlIeCidK3PIfCrixvmmGMMzB2tapLWH2DkPC/jQc18=
Copy and paste both these keys temporarily in someplace secure outside of your terminal, you’ll need them again below (Don’t forget to delete the temporary file after you’ve added the keys to your config).
Step 3. Configure client interface: Debian 9
The process is similar to that of the server apart from the information in the configuration files.
We will call our interface wg0 and use the configuration file to define the private network, our client private key, and the server’s public key and IP address.
You will need to add your own values to the PrivateKey, PublicKey, and Endpoint fields in the code block further down.
Find server public key
PublicKey is the server_public.key on the VPN server. Go to the server and obtain the key by running the cat command;
sudo cat /etc/wireguard/server_public.key
Output JBzWtHi9fGCfCcSs8e59tQ0Pwam16PeMVN2+SVhaL0k=
Copy and paste this key temporarily in someplace secure outside of your terminal, you’ll need to add it to the config file below. (Don’t forget to delete the temporary file after you’ve added the key to your config)
Time to create the client configuration file.
Create config file on client machine
Now, we will use GNU nano Text Editor editor to create and open the blank configuration file:
sudo nano /etc/wireguard/wg0.conf
Now add the configuration text below.
[Interface] Address = 10.10.0.2/32 Address = fd86:ea04:1111::2/128 SaveConfig = true PrivateKey = your client_private.key here DNS = 1.1.1.1 [Peer] PublicKey = your server_public.key here Endpoint = your server public ip:51820 AllowedIPs = 0.0.0.0/0, ::/0
Use arrow keys to navigate to text and retype.
NOTE:
Under [Interface]
Address = 10.10.0.2/32this must be in the same IP subnet as your server is, but the IP cannot be exactly the same. For example: increase the last digit before the prefix/32by 1. We’ve increased ours from1to2.- Replace
your client_private.key herewith your ownclient_private.key,
Under [Peer]
- Replace
your server_public.key herewith your ownserver_public.key, Endpoint: replaceyour server public ipwith your own
It should look as such with your own values added to fields with blue underline.
Save the file: Ctrl+O, then Enter to save filename, and exit: Ctrl+X.
Set the right permissions for your configuration file wg0.conf, hence making it secure.
sudo chmod 600 /etc/wireguard/wg0.conf
Step 4. Add the client peer to the server
We will now add the client public key and IP to the server using the following syntax:
sudo wg set wg0 peer client_public.key allowed-ips client_ip/32,fd86:ea04:1111::2/128
To do this, go to the server and run the command below with your own client_public.key and client_ip_address inserted. As an example, it will look like this:
sudo wg set wg0 peer a9rp8VZrNOWDUGV5VCqCZlv1V9HuYsZtEP99VAt3NWw= allowed-ips 10.10.0.2/32,fd86:ea04:1111::2/128
To confirm the addition, run the following command on the server.
sudo wg
Output interface: wg0 public key: JBzWtHi9fGCfCcSs8e59tQ0Pwam16PeMVN2+SVhaL0k= private key: (hidden) listening port: 51820 peer: a9rp8VZrNOWDUGV5VCqCZlv1V9HuYsZtEP99VAt3NWw= allowed ips: 10.10.0.2/32, fd86:ea04:1111::2/128
This shows that we have successfully added the peer.
Check connections
We will now start the interface on the client using the wg-quick command.
Note: Before you start the client interface, if your client machine is also a server, bringing up the wg0 interface will cause you to lose SSH access to your client machine. To ensure your command completes, run the following:
sudo apt -y install screen
sudo screen
Press spacebar twice, you should now be in a /home/ directory
Now start the interface on the client machine
sudo wg-quick up wg0
If you get an error about missing resolvconf,
Output [#] resolvconf -a wg0 -m 0 -x /usr/bin/wg-quick: line 32: resolvconf: command not found
install it using the command below
sudo apt install resolvconf
Now try to start the interface again.
This will give the following output:
Output [#] ip link add wg0 type wireguard [#] wg setconf wg0 /dev/fd/63 [#] ip -4 address add 10.10.0.2/32 dev wg0 [#] ip -6 address add fd86:ea04:1111::2/128 dev wg0 [#] ip link set mtu 1420 up dev wg0 [#] ip -6 route add ::/0 dev wg0 table 51820 [#] ip -6 rule add not fwmark 51820 table 51820 [#] ip -6 rule add table main suppress_prefixlength 0 [#] ip6tables-restore -n [#] ip -4 route add 0.0.0.0/0 dev wg0 table 51820 [#] ip -4 rule add not fwmark 51820 table 51820 [#] ip -4 rule add table main suppress_prefixlength 0 [#] sysctl -q net.ipv4.conf.all.src_valid_mark=1 [#] iptables-restore -n
You can check the status of the interface using the wg command
On the server
sudo wg
On the client machine
Note: If your client machine is also a server, you’ve lost SSH access and will now need to SSH from your server to the client machine via the IP address you assigned it in the client config file above. We assigned our client the IP 10.10.0.2. So now we have to
ssh clientserver@10.10.0.2
Now run
sudo wg
To see if the client can ping the server run ping followed by your server IP you assigned it in the server config file:
ping 10.10.0.1
Output PING 10.10.0.1 (10.10.0.1) 56(84) bytes of data. 64 bytes from 10.10.0.1: icmp_seq=1 ttl=64 time=0.733 ms 64 bytes from 10.10.0.1: icmp_seq=2 ttl=64 time=0.715 ms 64 bytes from 10.10.0.1: icmp_seq=3 ttl=64 time=4.04 ms 64 bytes from 10.10.0.1: icmp_seq=4 ttl=64 time=0.732 ms 64 bytes from 10.10.0.1: icmp_seq=5 ttl=64 time=0.915 ms 64 bytes from 10.10.0.1: icmp_seq=6 ttl=64 time=1.40 ms 64 bytes from 10.10.0.1: icmp_seq=7 ttl=64 time=1.00 ms 64 bytes from 10.10.0.1: icmp_seq=8 ttl=64 time=0.994 ms ^C --- 10.10.0.1 ping statistics --- 8 packets transmitted, 8 received, 0% packet loss, time 7049ms rtt min/avg/max/mdev = 0.715/1.316/4.042/1.052 ms
This shows that we have successfully added the peer to the server and established a connection. Note, that you can turn the interfaces on and off by running:
sudo wg-quick up wg0
to enable, and
sudo wg-quick down wg0
to disable.
To enable WireGuard on system boot, run the command below on both the server and the client.
sudo systemctl enable wg-quick@wg0
Note: if your client machine is also a server, and you now have to SSH to it via your server using the client config IP, use the exit command to exit the client machine session and return to your server terminal.
Now you should be all set up. We hope this helped.
Happy hosting!
Visit our other blogs if you have other OS requirements:
Latest posts
- Deploy Kubernetes Cluster on Ubuntu 20.04 with Containerd
- Automate Kubernetes Cluster Deployment with Ansible on CentOS Stream 8
- Deploy Kubernetes Cluster on CentOS Stream with Containerd
- The Basics of the .htaccess File
- 9 Quick Ways To Optimise Website Images
- Is the Small Business Website an Obsolete Tool?
- Why Your Small Business Needs a Custom Email
- How To Make Money with Reseller Hosting
- The WHOIS who and what’s what of the internet
- Acronis Cloud Reseller Setup
